Neo2USB Ultra Low Latency Neo Geo controller adapter for MiSTer FPGA

Retro Frog

Regular price $27.00

Preorders open August 18th at 12pm noon Eastern Time.  They will start shipping on August 27th and will take a week or two to complete depending on how many are ordered.

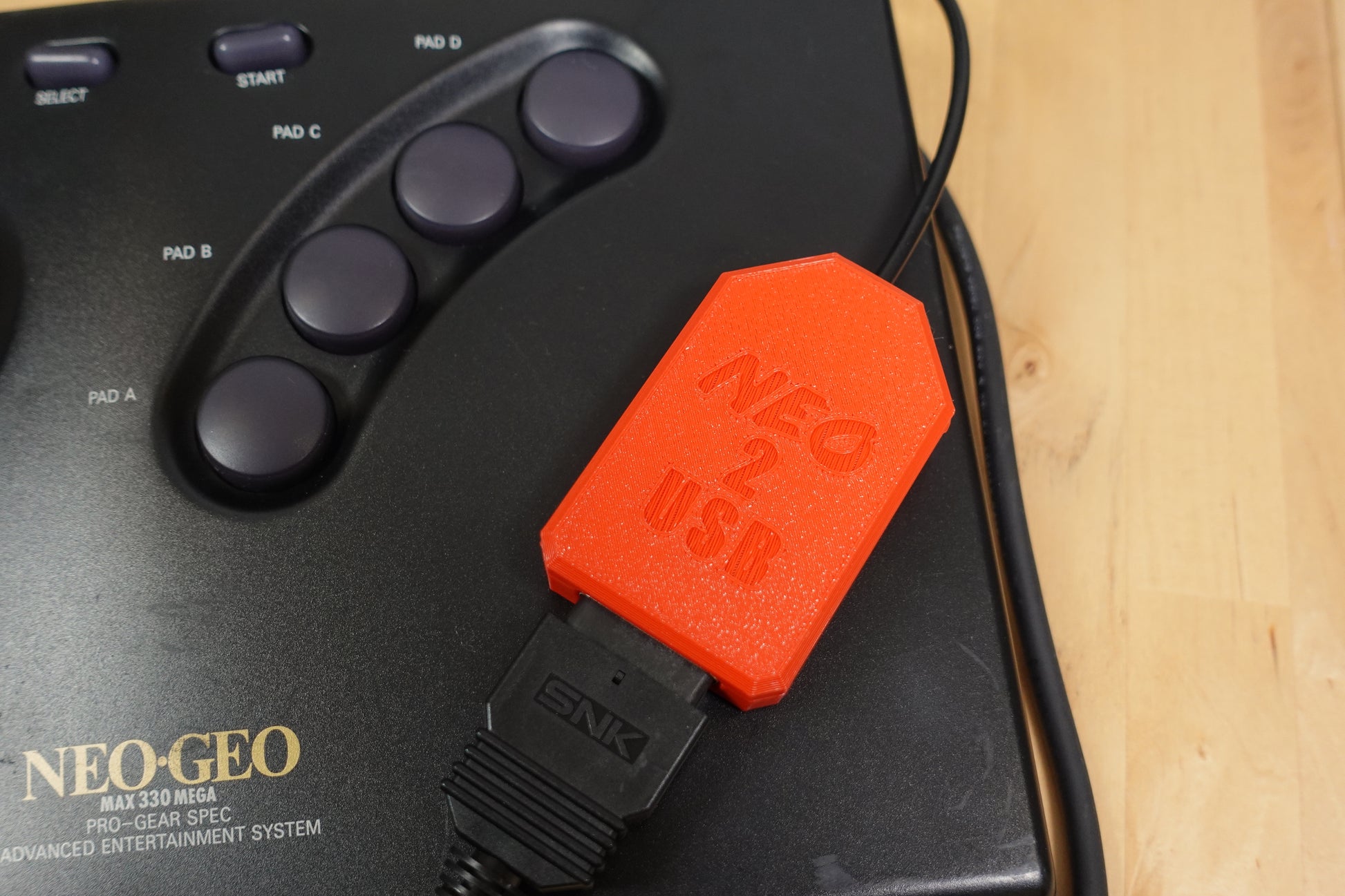

Do you wish you could use your original Neo Geo controllers on the MiSTer console? Now you can!



The Neo2USB is a ultra low latency DB15 to USB converter. It uses the open source daemonbite firmware and provides on average 1ms latency. Provides all 4 directions, Select, Start and the 4 action buttons. This does not support 6 button arcade sticks! For those you would need to solder a couple wires and reflash the firmware.

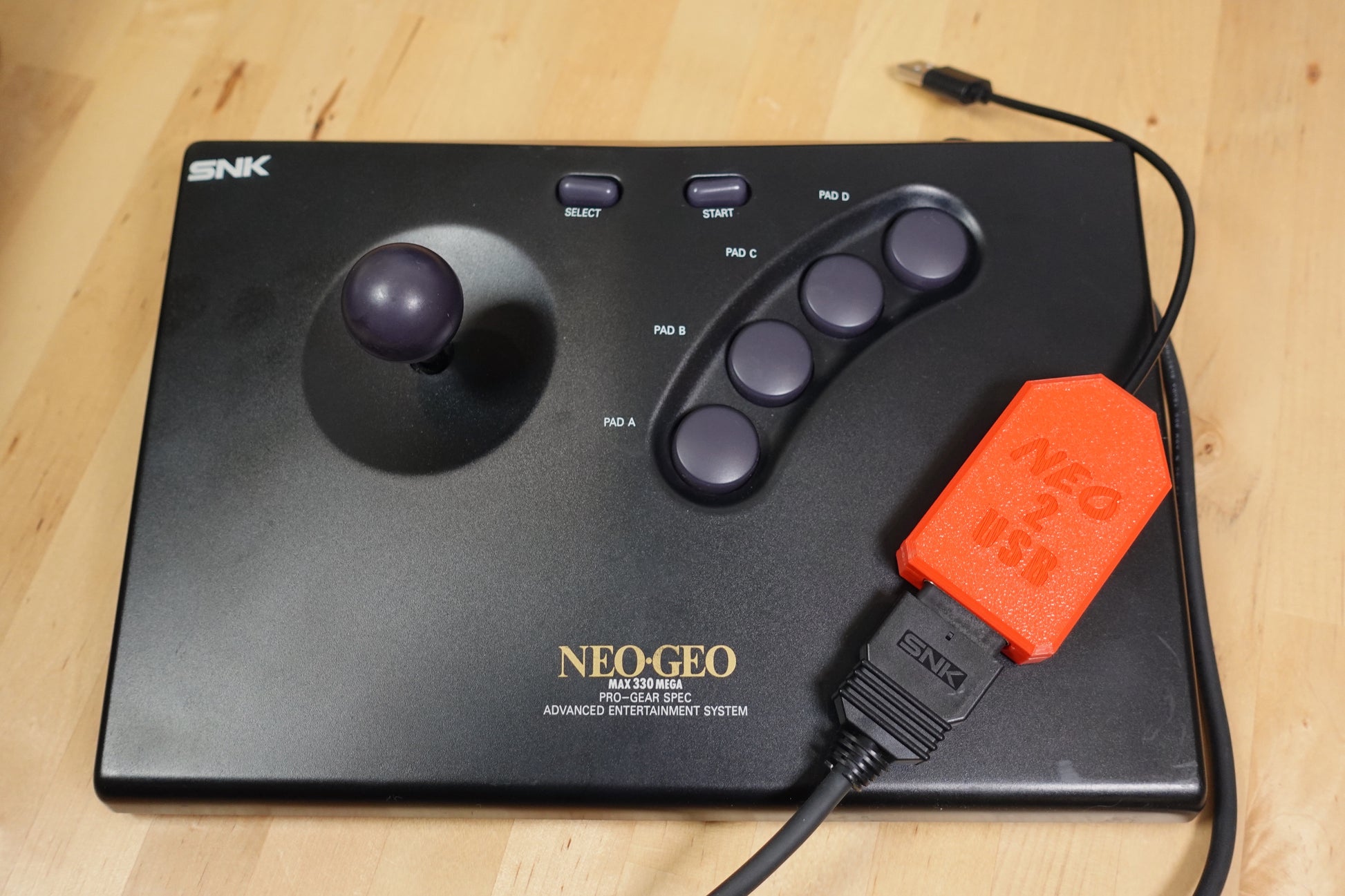

Compatible with the original AES Neo Geo Stick, the CD pad and the bean shaped Controller Pro. Should also work with all 3rd party Neo Geo controllers.


Kit comes assembled and ready to use. Just plug your Neo Geo controller into it, plug it into your MiSTer and map out your controls like you would with any other controller. No special setup required. Compatible with all cores.

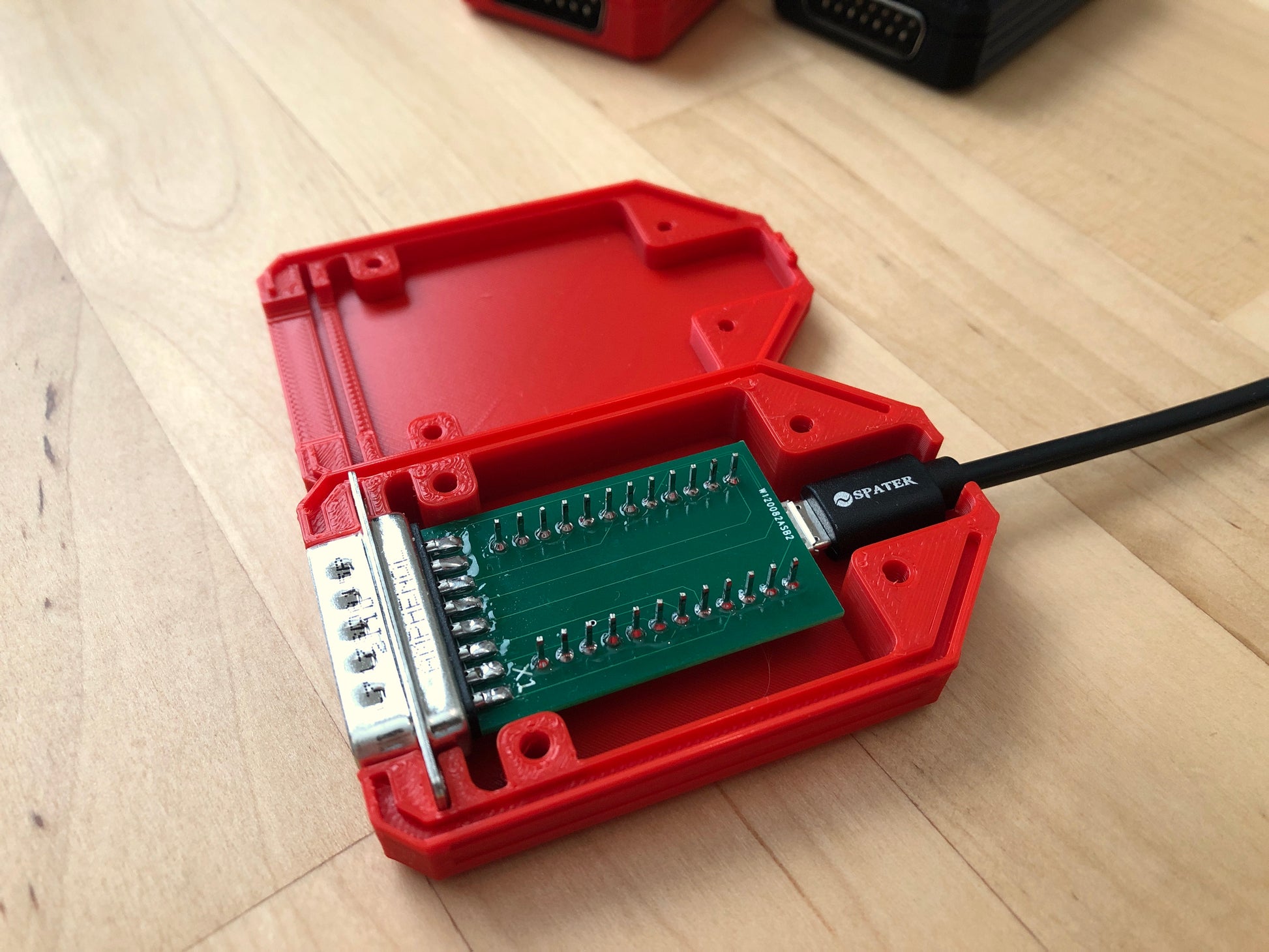

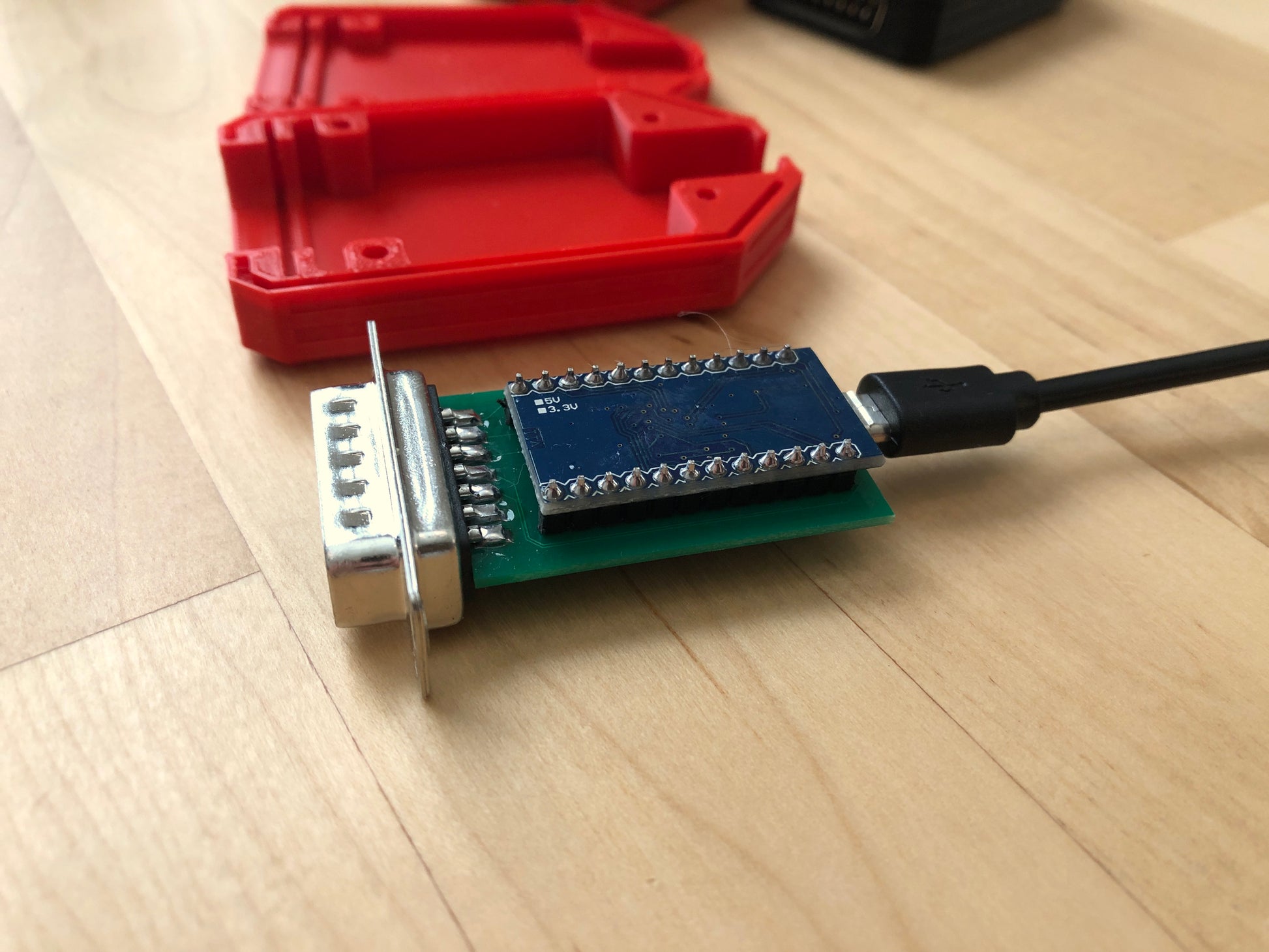

For this, I designed a 3d Printed enclosure with custom interface board to Arduino Pro Micro and short microUSB cable. The microUSB cable is captive so it can't be lost. Can easily be replaced if needed.

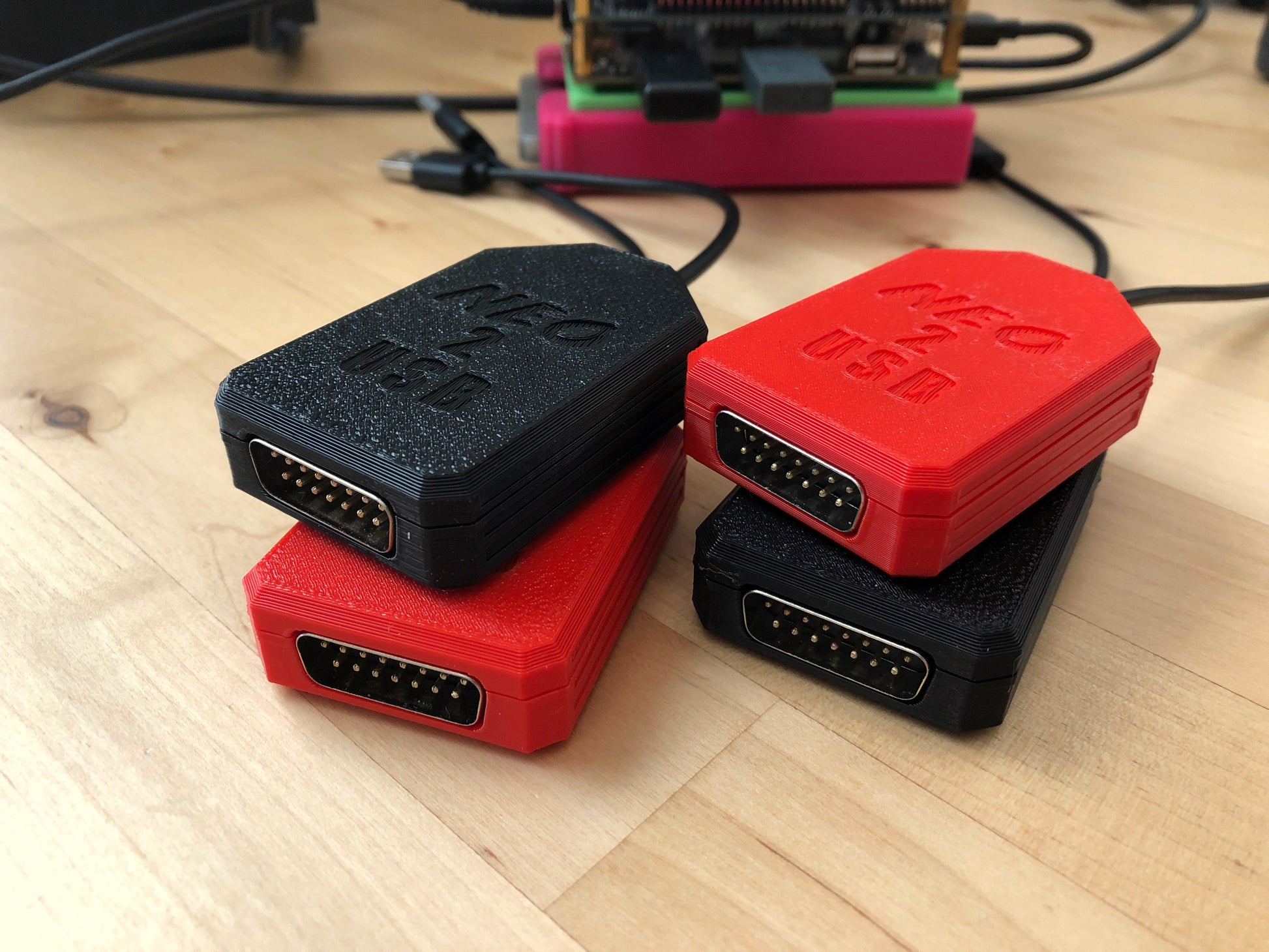

Choice of 2 colors. Red and black.
