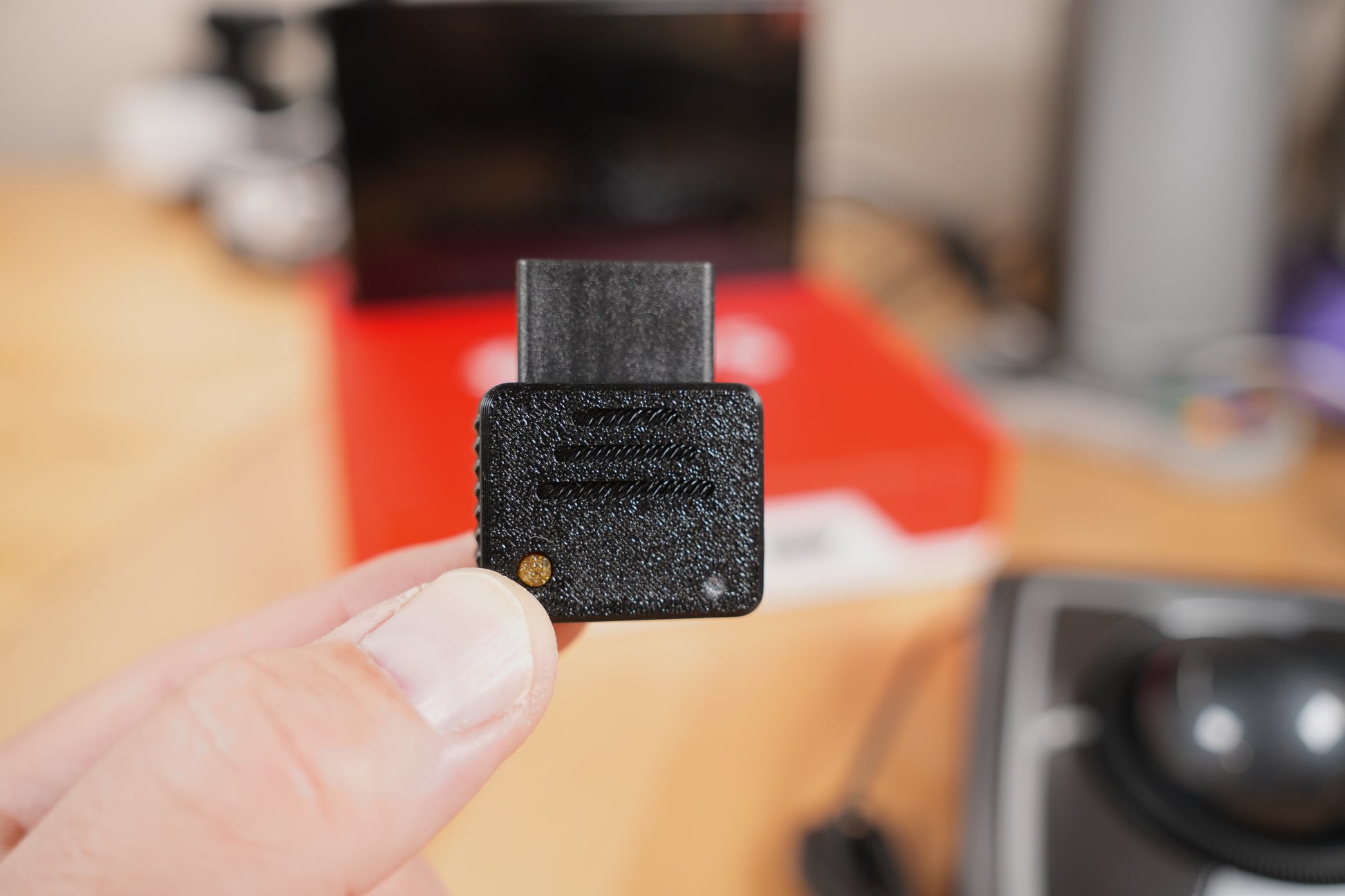

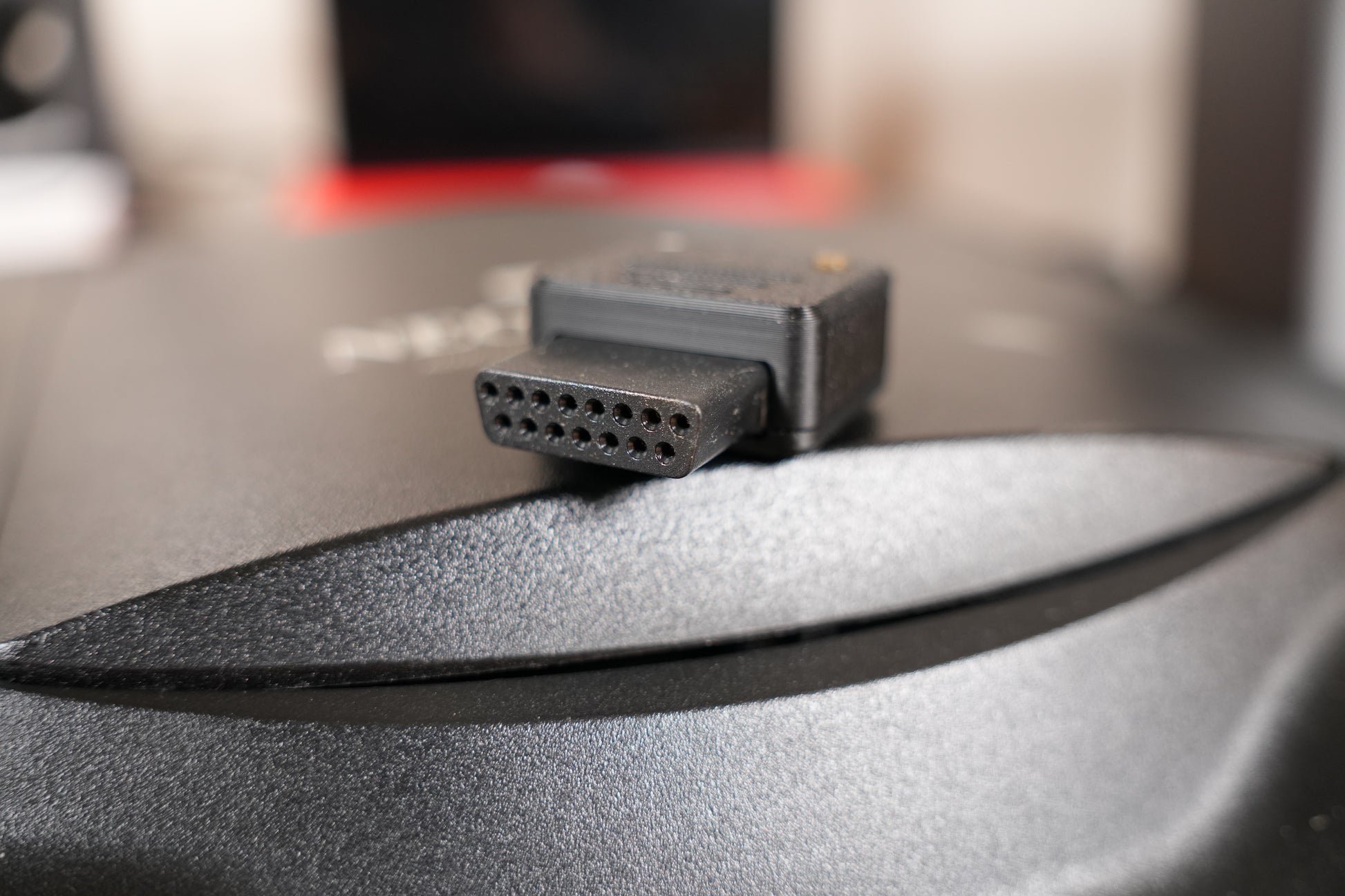

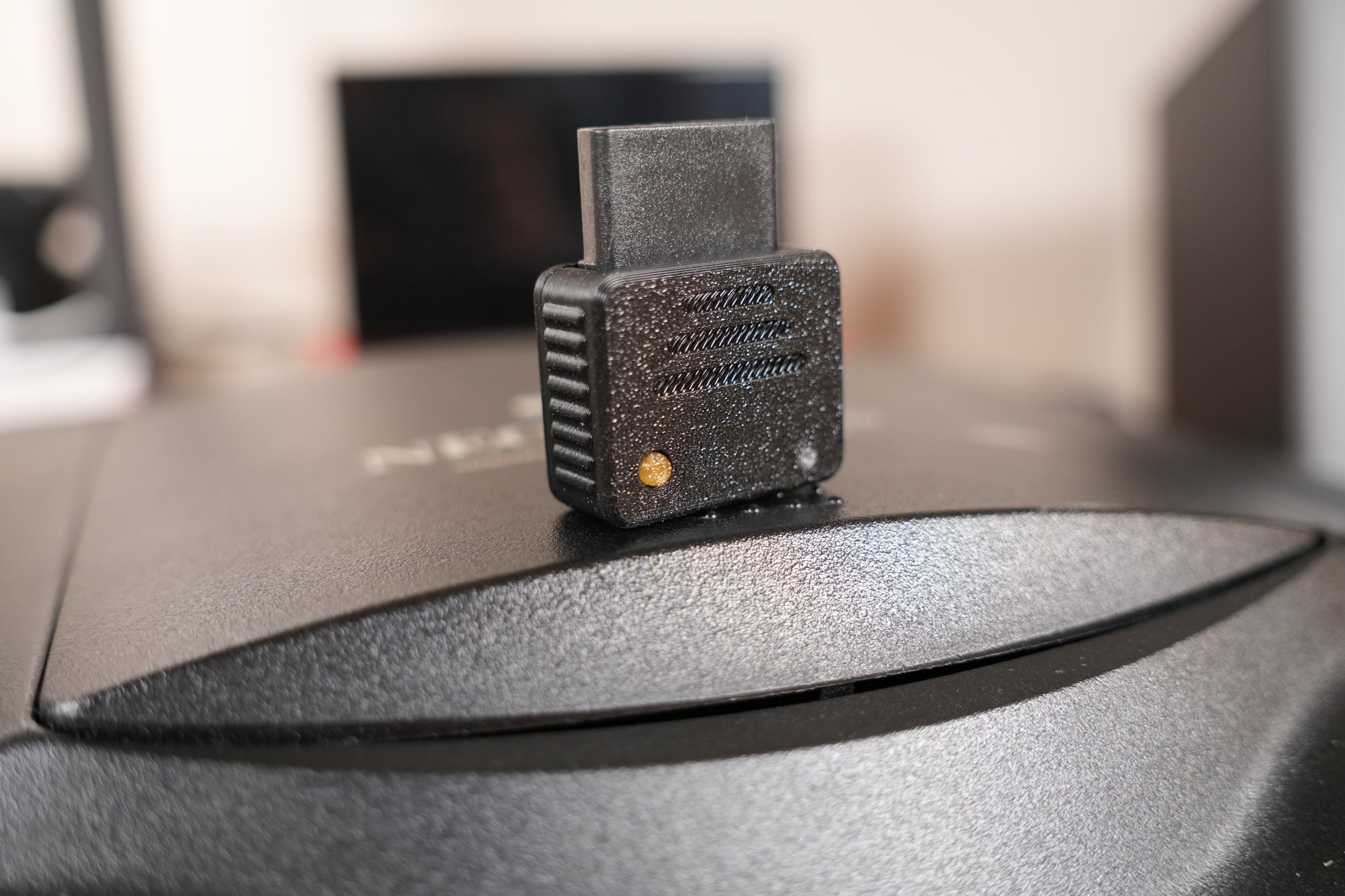

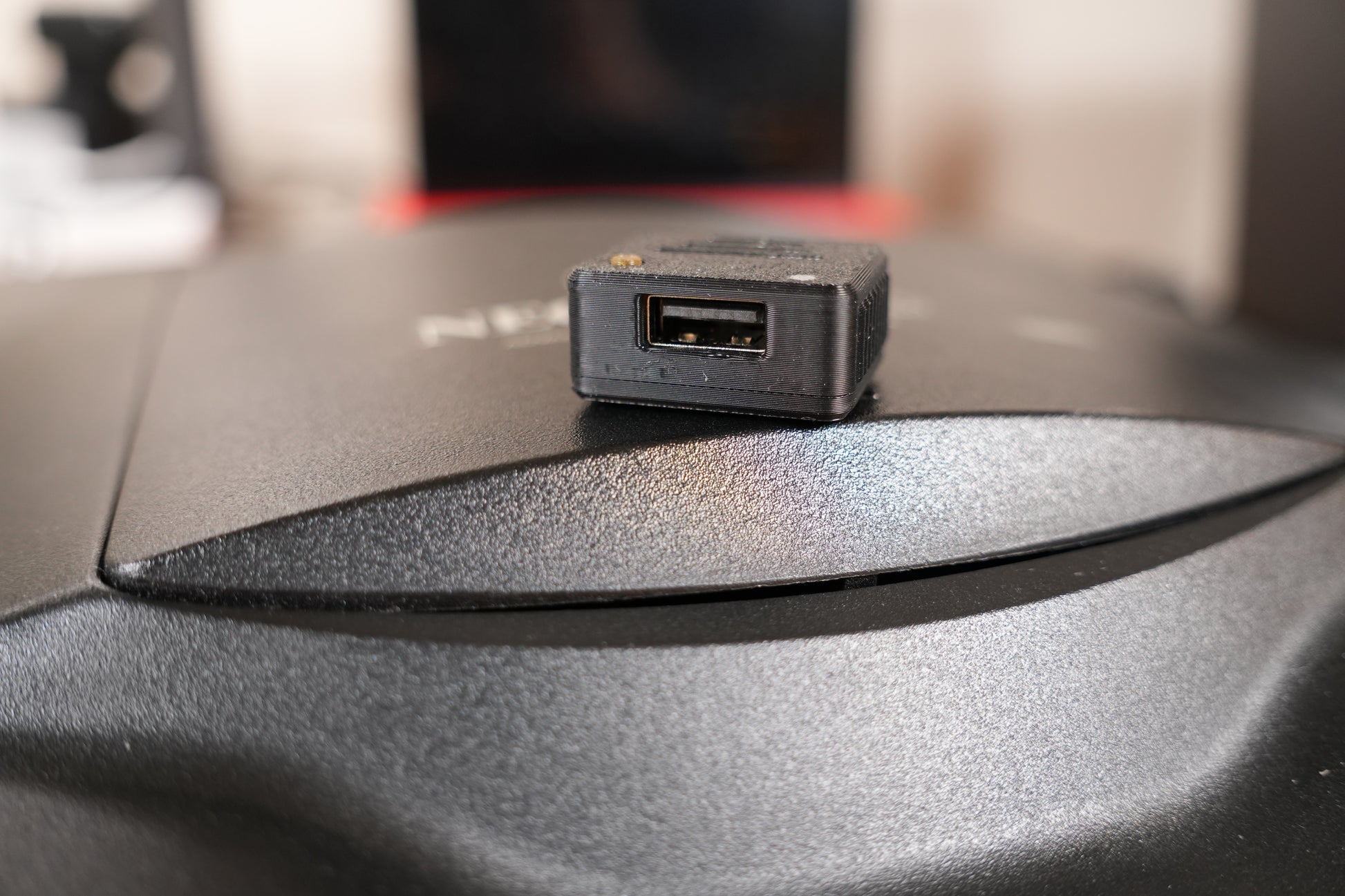

USB4NEO - USB Controller & Mouse Adapter for Neo Geo and superguns!

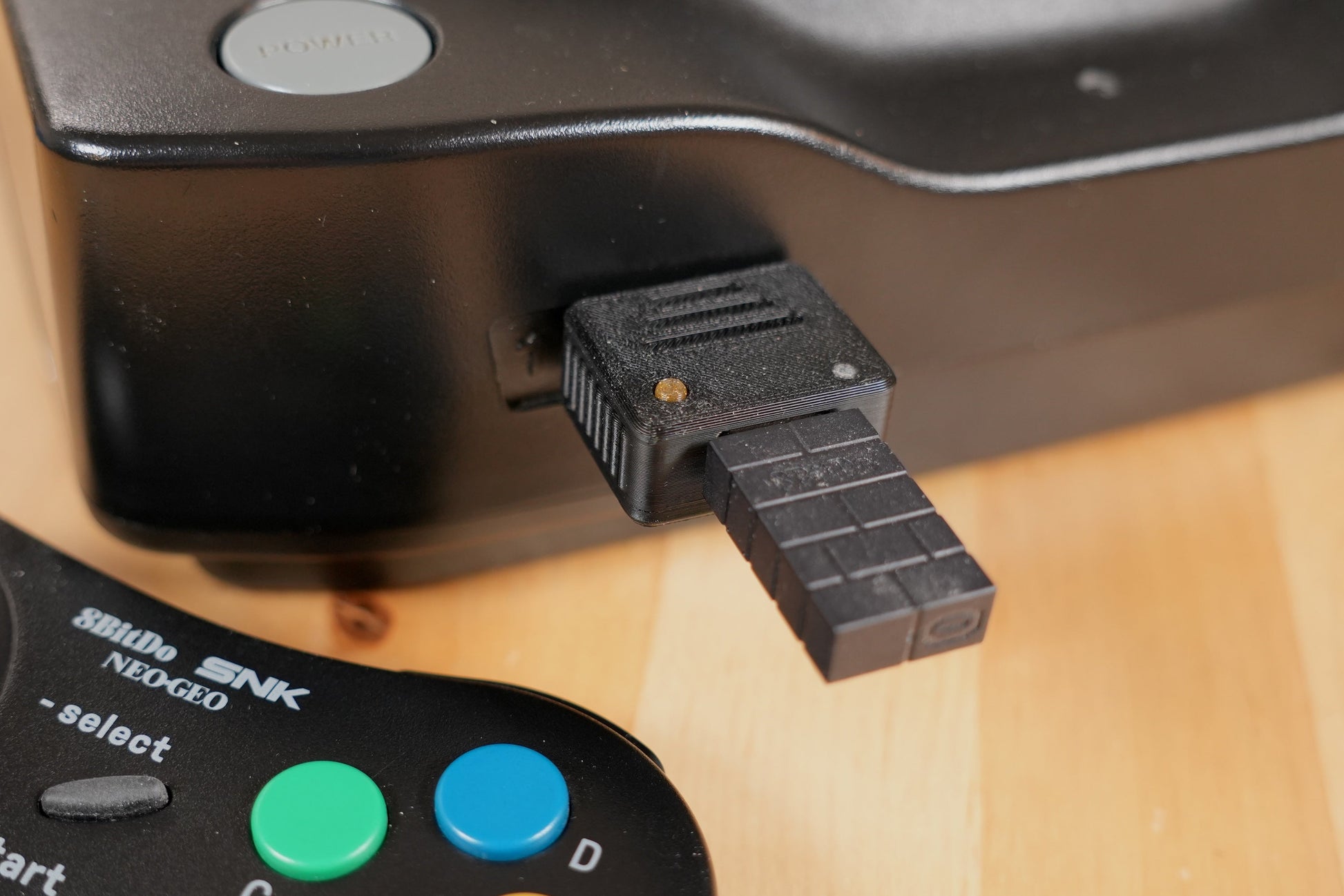

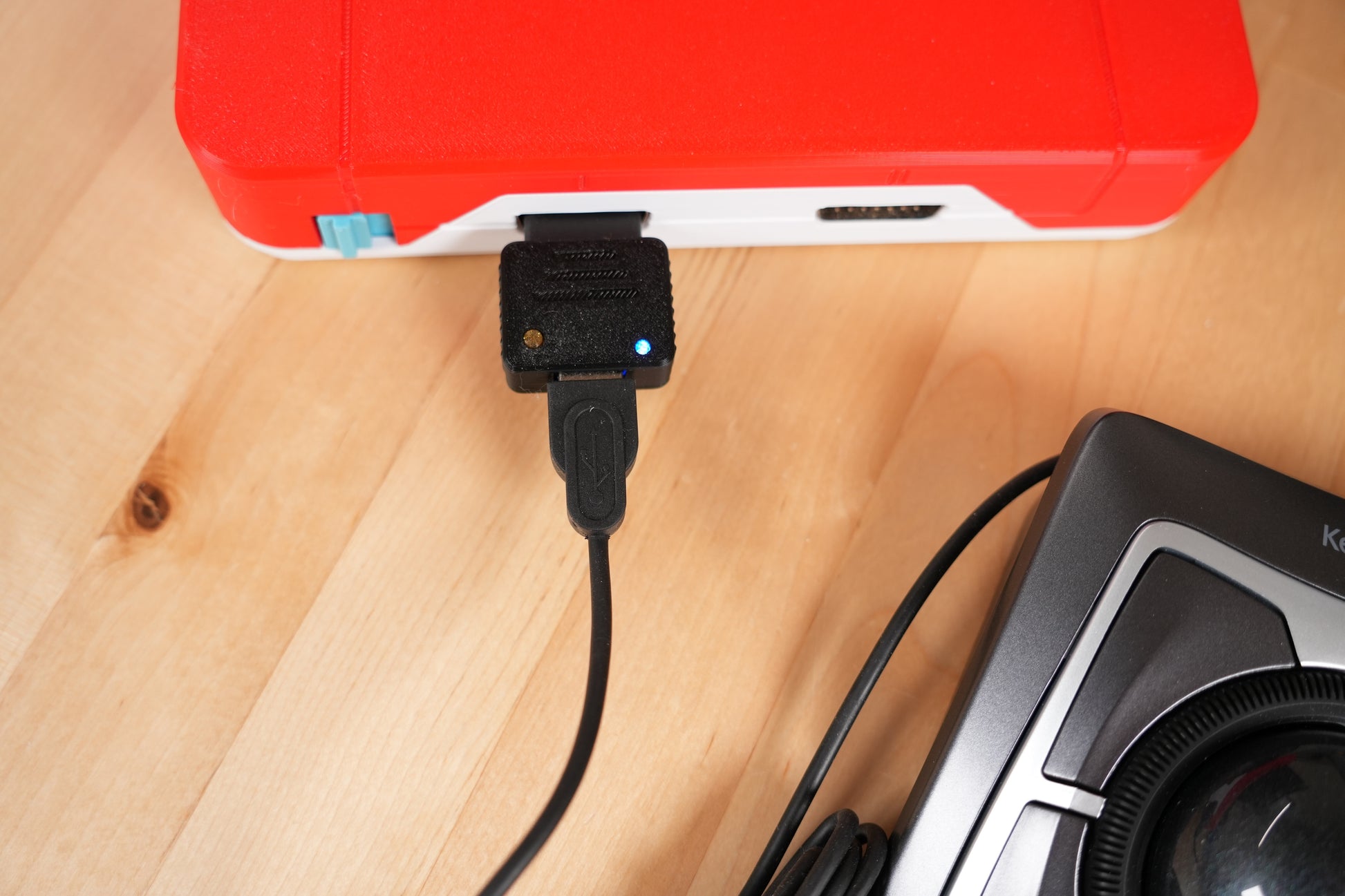

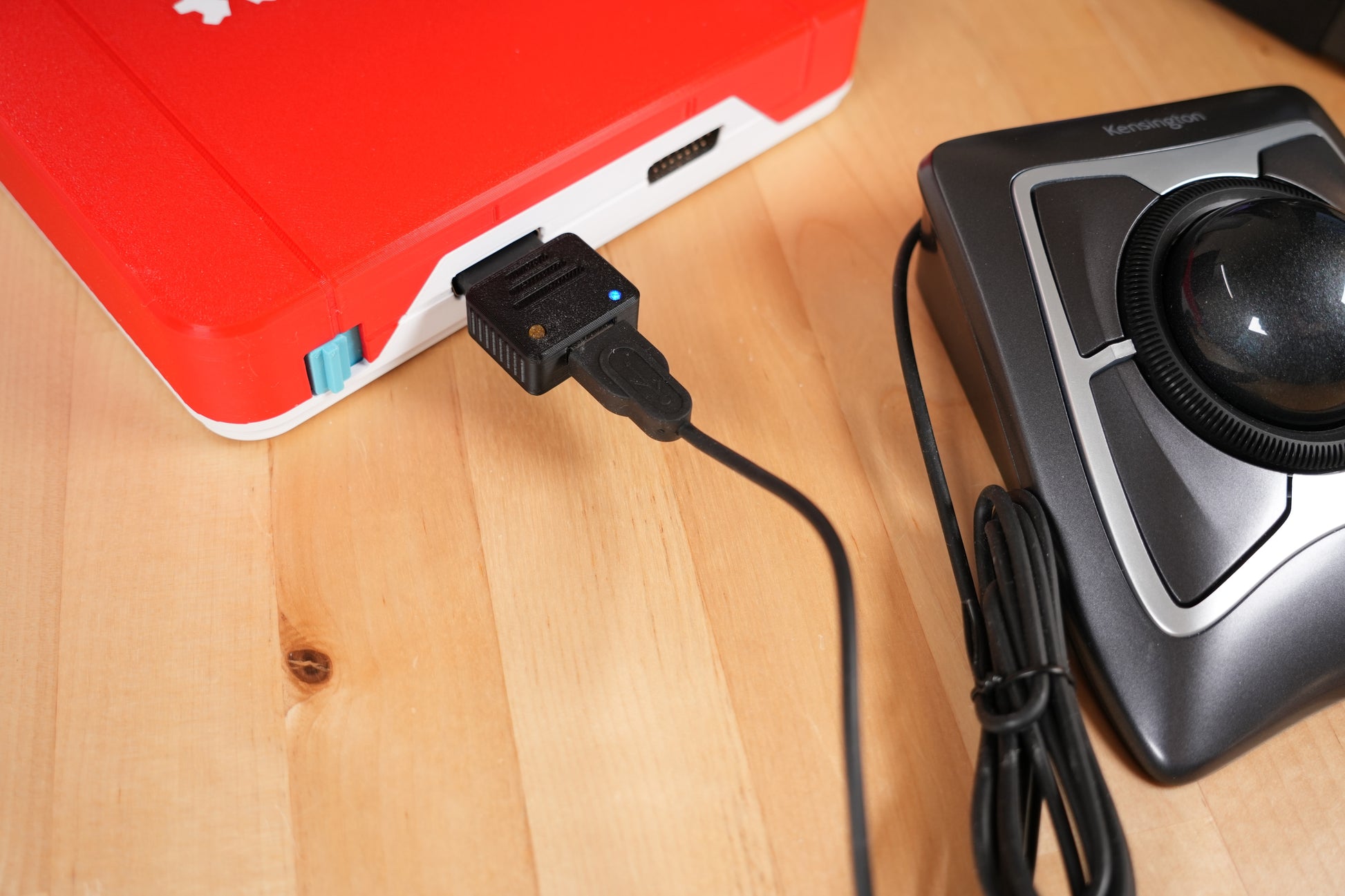

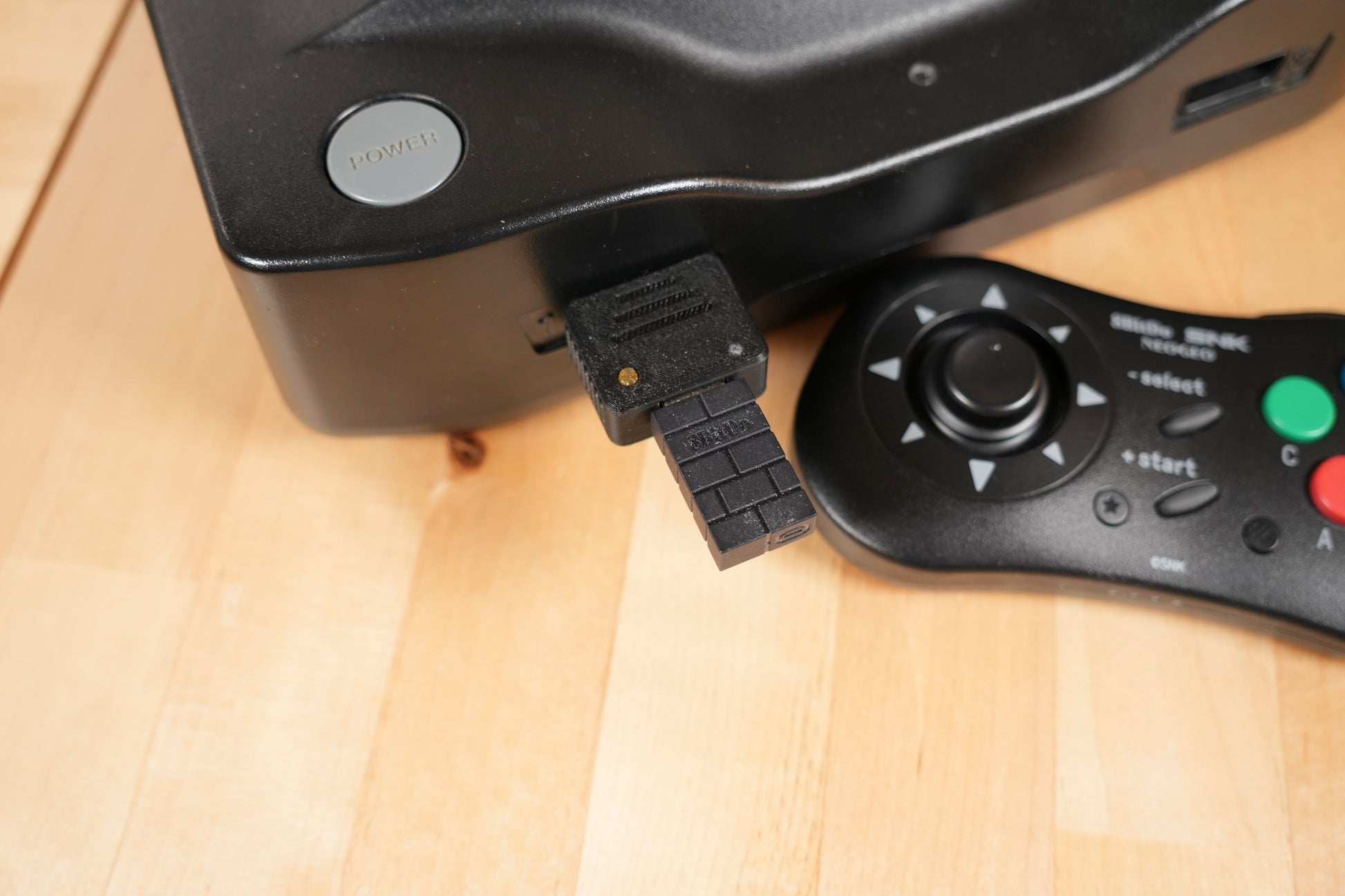

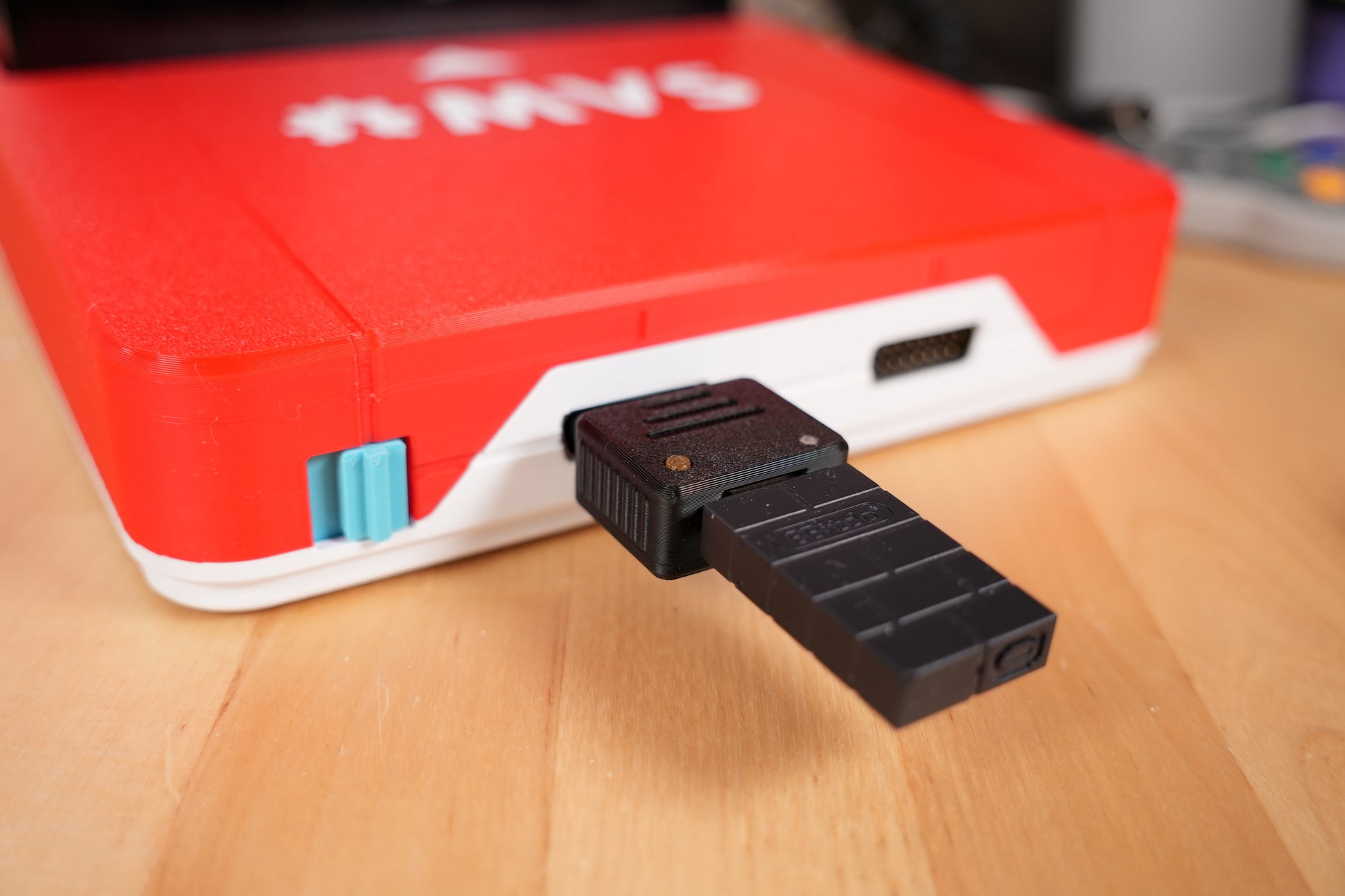

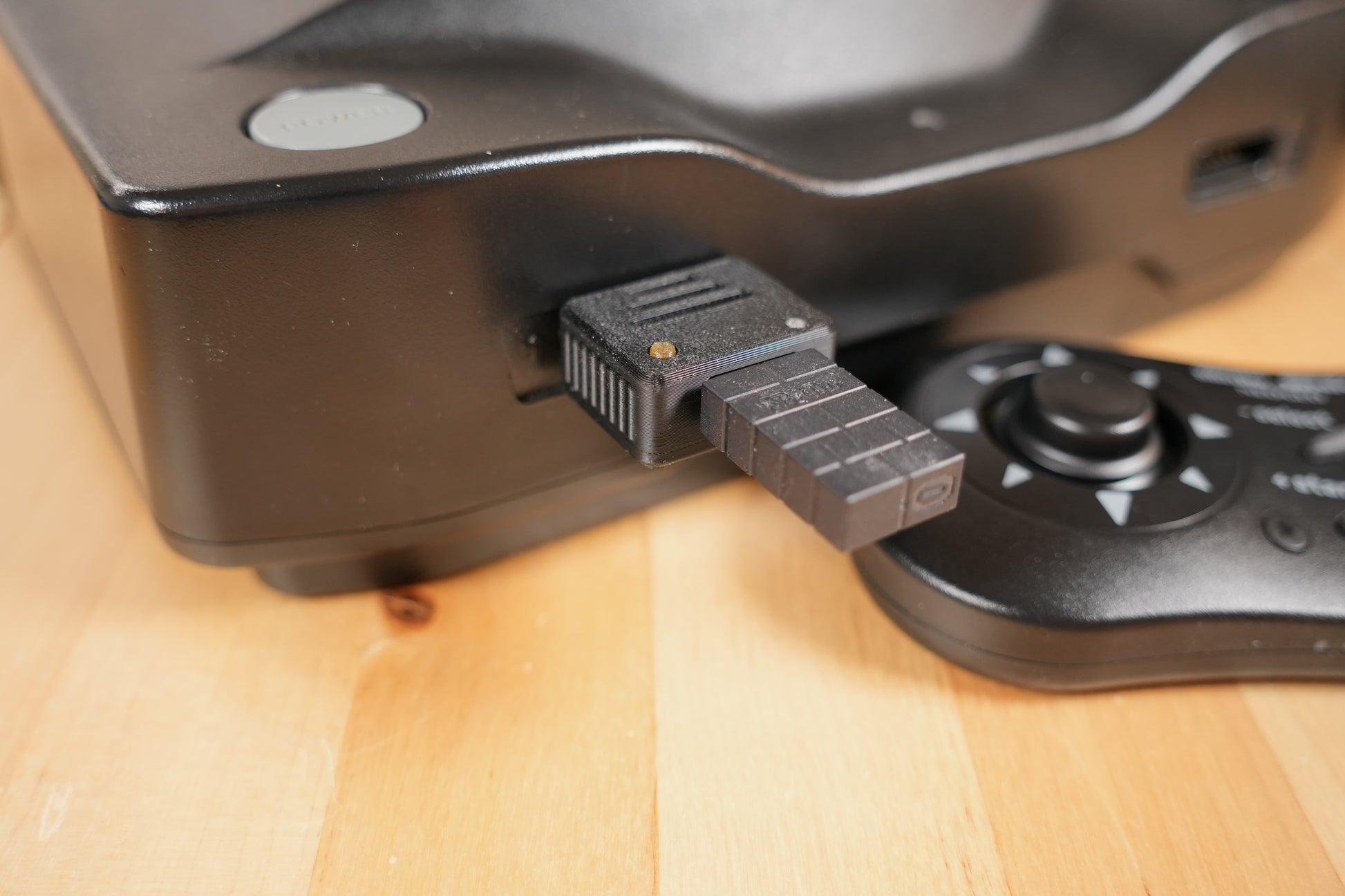

Bring your modern USB gamepads, joysticks and mice to your Neo Geo. USB4NEO plugs directly into your Neo Geo AES, CD or MVS console joystick port and instantly makes your favorite USB gamepad or mouse work! Works with Superguns that are wired to the Neo Geo standard. Supports the standard 4 Neo Geo buttons and 2 extra buttons (commonly used with Supergun setups) for 6 total buttons.
2 Versions available: You can purchase USB4NEO by itself, or with a male USB-A to USB-A cable for firmware updates. Tip: If you buy more than one, you only need one cable. So save yourself a couple bucks and get just one with a cable if you don't already own a USB-A to A male cable. The same A to A cable works with USB4AMI and upcoming USB4JAG
Supports:
- Neo Geo AES
- Neo Geo CD consoles (all versions)
- Consolized MVS boards
- Superguns wired to the Neo Geo spec
- See manual link below for full list of supported and unsupported platforms
Works with the vast majority of USB HID controllers or mice
Features:
- Full 6-button Neo Geo support with two optimized pad layouts (Pad A and Pad B)
- Custom Controls mode — remap all Neo Geo face buttons (and 2 extra buttons) to any button on your controller, saved across power cycles
- Mouse Joystick mode for directional mouse input — perfect for Puzzle Bobble
- Mouse Spinner/Paddle mode with 7-bit binary counter protocol — designed for Hypernoid and compatible games
- Adjustable live mouse DPI (1–8x), saved across power cycles
- Turbo fire with hardware timer — toggle per button, 10Hz rapid fire
- In-game UniBIOS protection — automatically blocks Select+Start and A+B+C+Select/Start combos in Spinner mode
- Intuitive navigation system — hold Select to access all settings without memorizing cryptic button combos at power on
- Built on RP2354A microcontroller and Joypad OS framework
- Easy firmware updates — connect via male USB-A to A cable and drag and drop
- Small and compact size — plugs directly into your Neo Geo or SuperGun controller port
- Designed by Retro Frog and ships from Ohio, USA
Small. Simple. Just works.
USB4Neo is open source!
Checkout out the GitHub: https://github.com/thgill/RetroFrog-USB-Adapters
Read the Manual/Documentation:
USB4NEO is built on Joypad OS, created by Robert Dale Smith.
